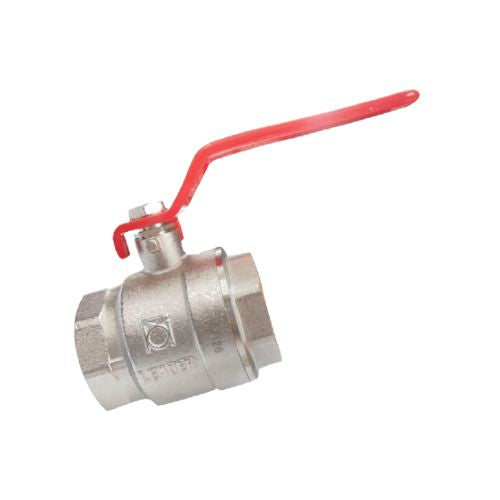

Ball Valve

Features:-

• Screwed Female Ends to BS:21/IS: 554.
• Full bore, Two Piece Design.
• Quarter Turn, lever operated with Low torque & stipulated leverage.
• Provided with forged brass hard chrome plated ball.
• Anti blow-out stem design feature which gives further assurance against the accidental blow-out of the stem.
• Premium quality PTFE seating.
• Nickel plated finish body & connector.
• Extra strength of stem with high tensile brass.
• Gland less design, stem sealing by double seal O ring ensures zero leakage from the stem.
• Replaceable & virgin oil free PTFE Rings for smooth operation.
• Anti corrosive SS/ Brass Stem Nut provided for trouble free operation of the Lever.
• Aluminium Lever avoids rusting of the lever in corrosive environment.
• Position indication of open/closeembossed on the lever.
