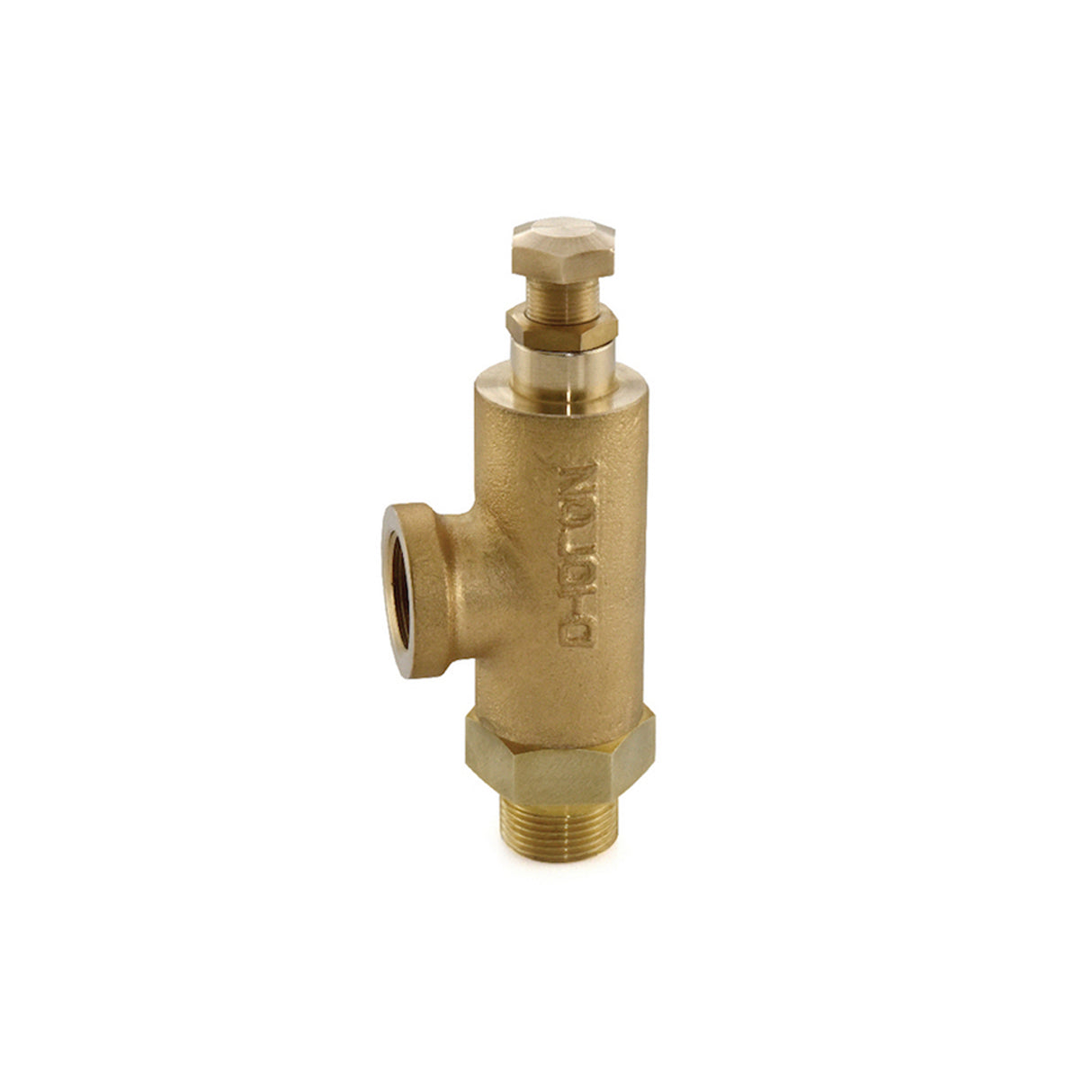

Safety Relief Valve -vArt No 1094A

Features:-

• Screwed Male End to IS 554 / BS 21 / ISO 7.
• Open Discharge Type.
• Metal to Rubber contact seating.

Test Pressure (Hydrostatic) :
Shell : 21.10 kg/cm²g (300 psig)
Seat : 10.55 kg/cm²g (150 psig)
Set Pressure Range : 0 – 10 kg/cm²g (Max.)
Maximum Working Temperature : 80°C



Suitable For:-

• Water, Oil, Air
